Harley-Davidson Dyna Low Rider 96 (FXDL)

Harley-Davidson Dyna Low Rider 96 (FXDL)

$17,000.00

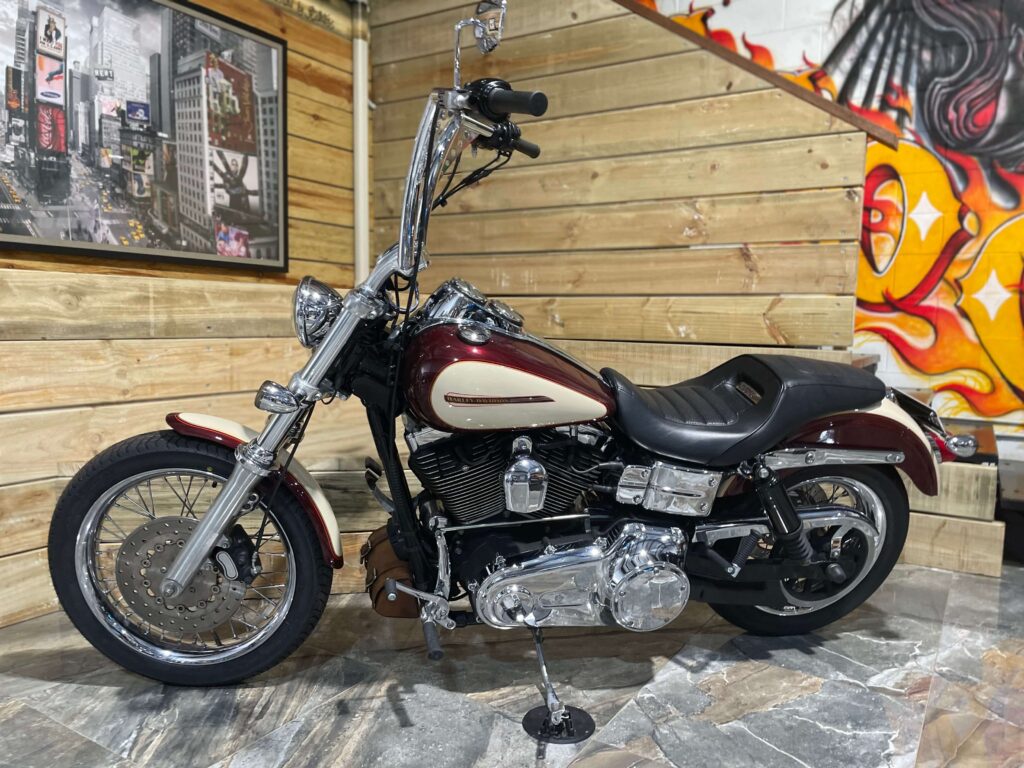

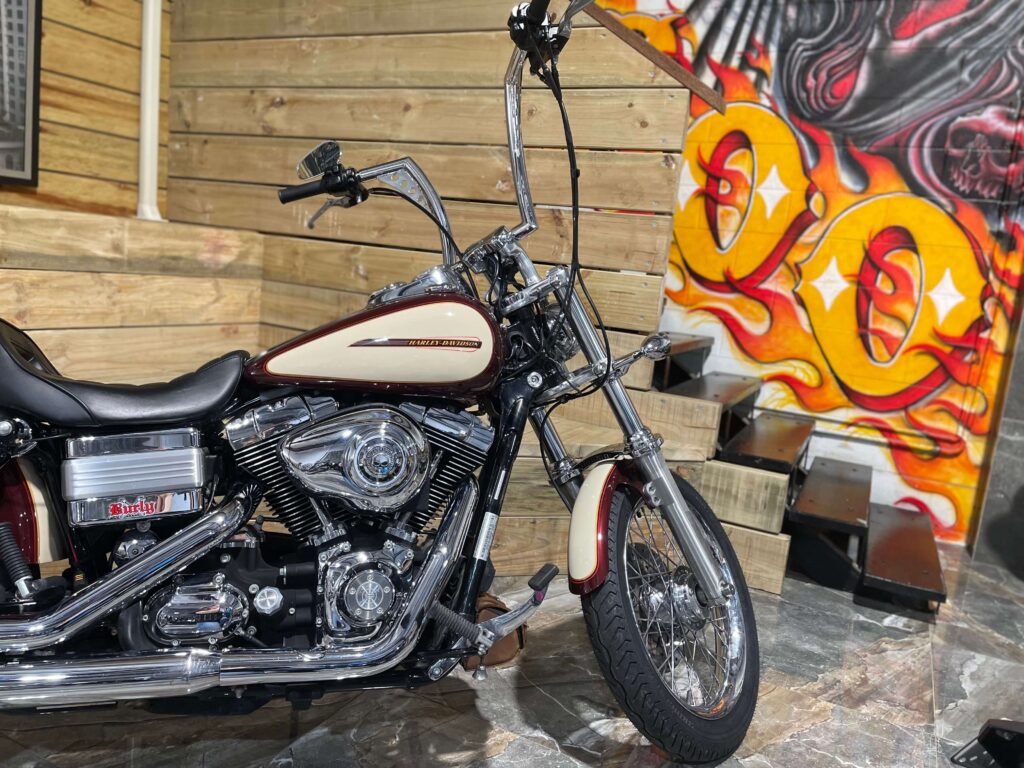

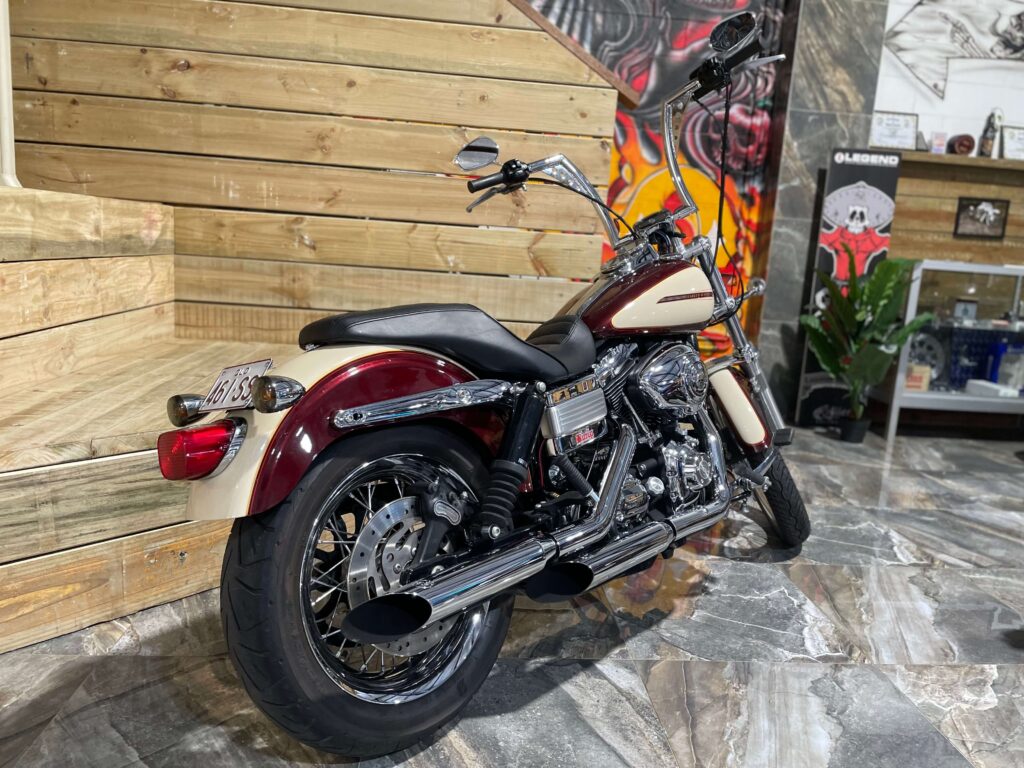

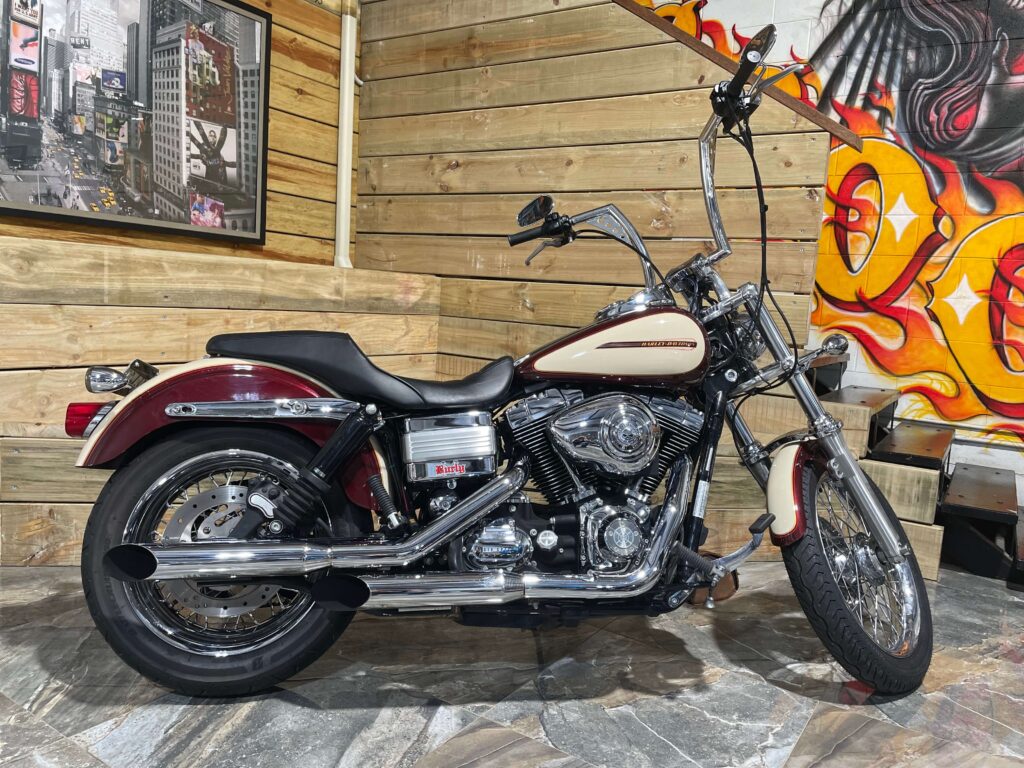

This beautiful Dyna is now proudly for sale here in our family owned dealership in Bowen Hills.

It is a traditional Harley with only a few modifications that have been done to ensure maximum rider comfort and is a very clean bike. With only 40,000km’s on the clock this motorcycle has been ridden and enjoyed over it’s lifetime while still keeping it very tidy and in very nice condition.

Product Details

It has just had a brand new front tyre fitted and has had the following mods done:

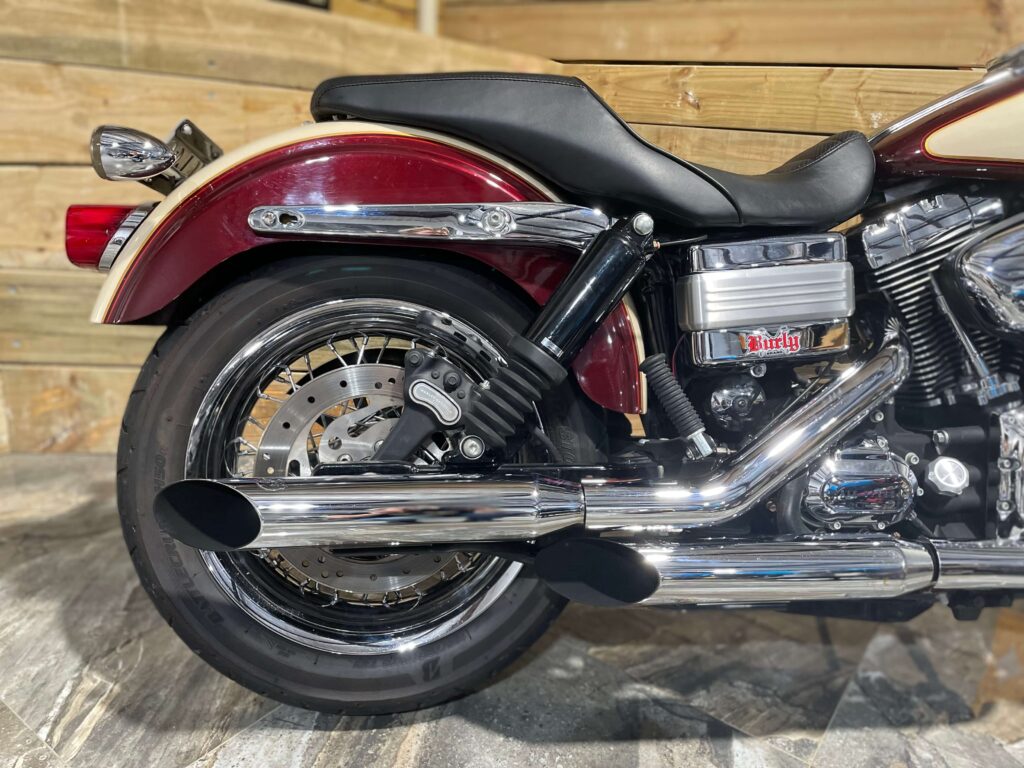

  • S&S Slip ons
  • Sidestand Extension (to ensure easy access)

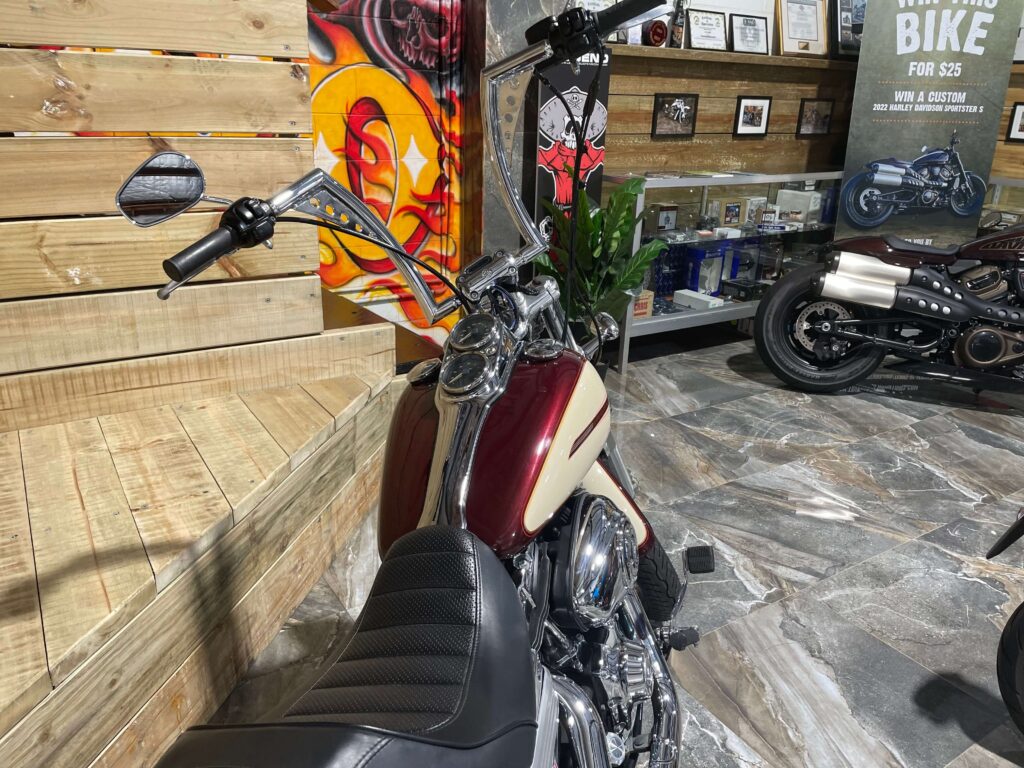

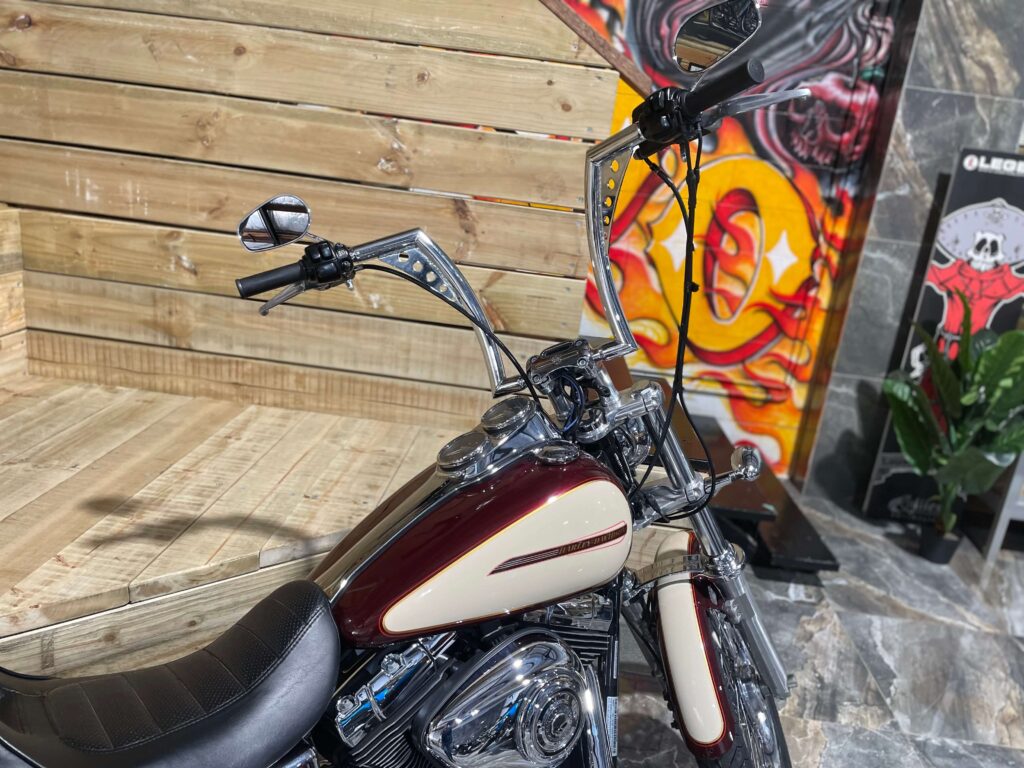

  • Custom Bars
  • SE Fork Brace
  • Lowmount HD Tool Roll

It has current Qld registration (until early 2023) and a valid Safety Certificate. The advertised price is also RIDE AWAY!

We can also arrange door to door freight Australia wide and have a broker on hand for any finance enquiries. Contact us today to arrange an inspection!

We are located just 10minutes from the city.

FINANCE AVAILABLE – DOOR TO DOOR FREIGHT AUSTRALIA WIDE!

BikeRoad Manual 6sp 1584cc
Price$17,000 Ride Away Finance estimate for this bike
Need Insurance?Request a quote
Kilometres40,388 km
Bike History Report Investigate the history of this bike
Body Cruiser
Engine Capacity 1584 cc

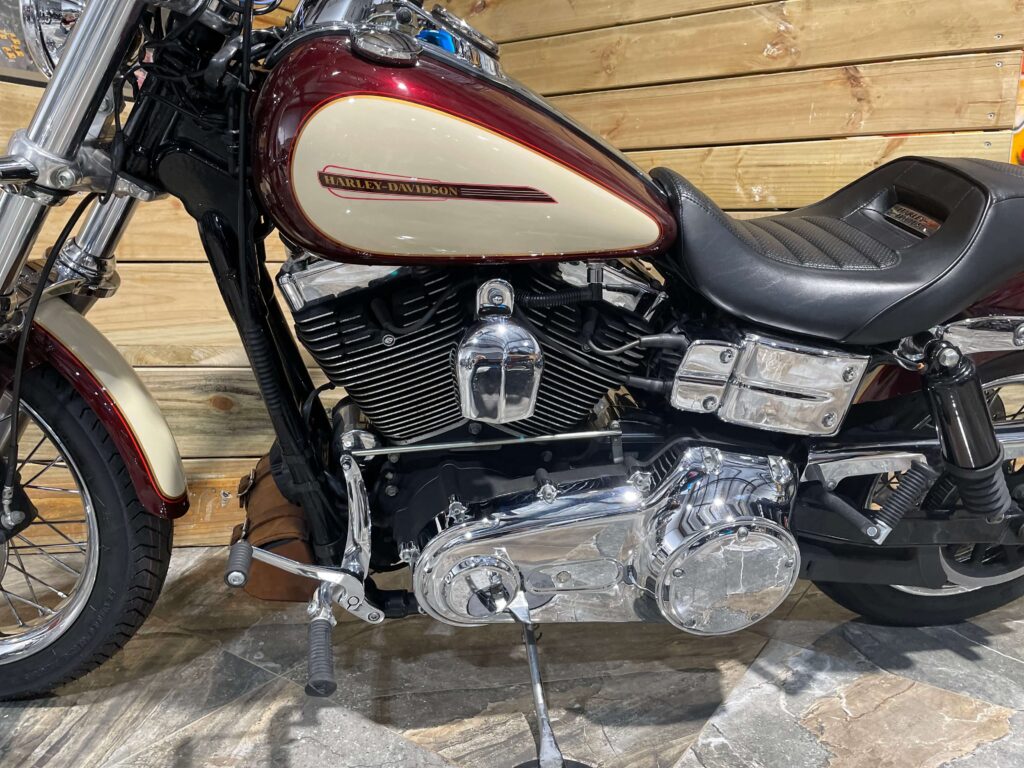

Configuration 1584cc, 4-stroke, Air cooled, 4-Valve, Pushrod OHV, Twin Cam, 45-deg V-Twin
Country of Origin USA

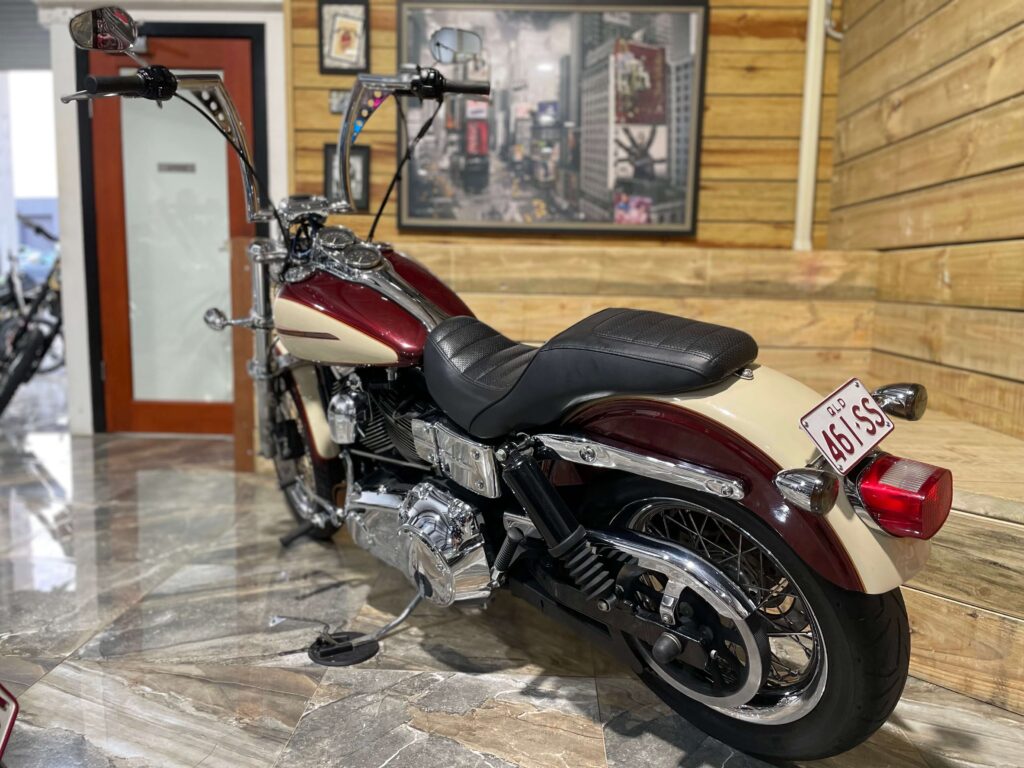

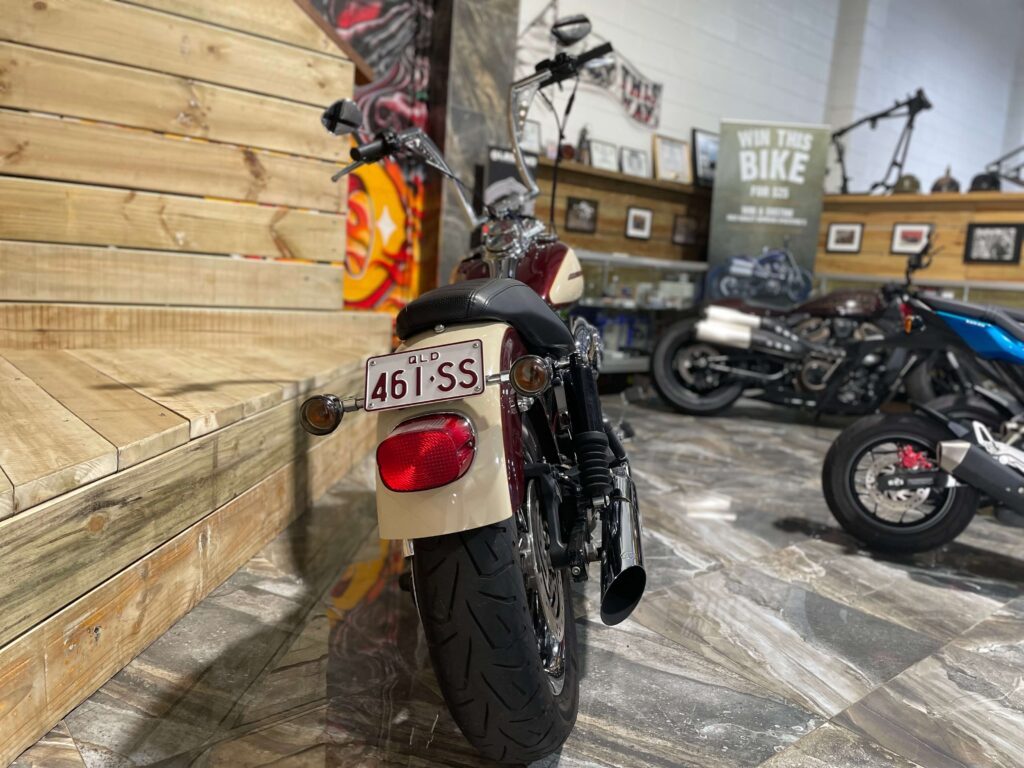

Registration Plate 461SS
Registration Expiry 4 Months – January 2023

Spec & Performance

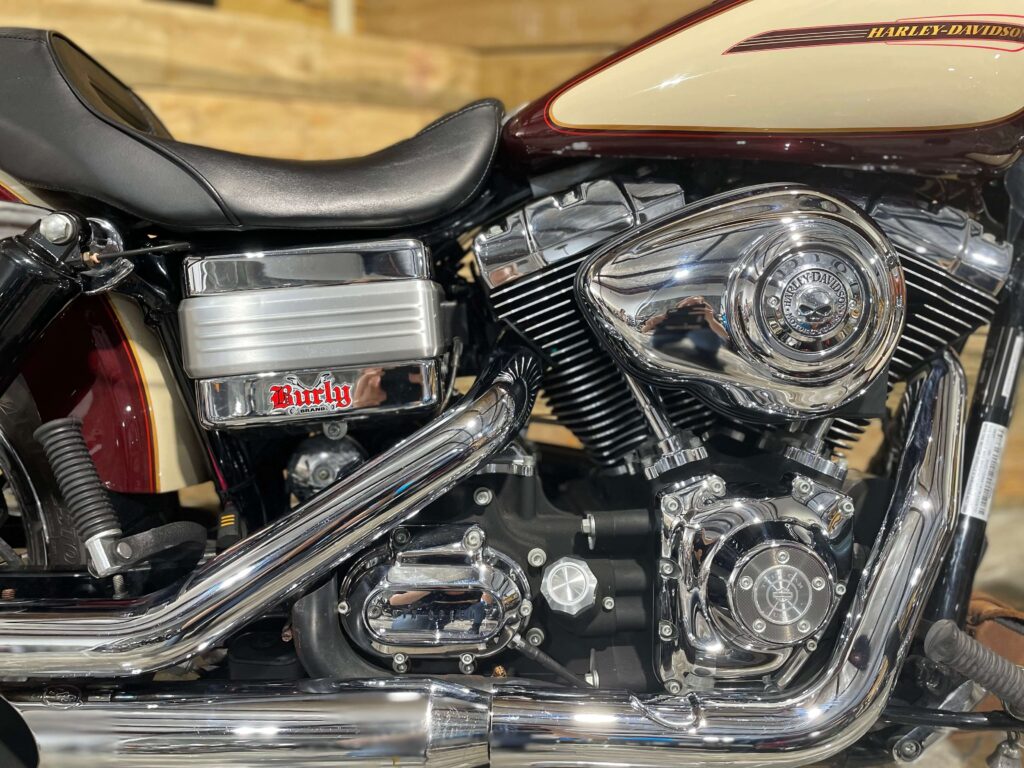

New vibration-isolated Twin Cam 96 engine with ESPFI Black powder-coated engine with chrome covers Chrome, staggered shorty dual exhaust 6-speed Cruise Drive transmission Enhanced clutch lever interlock operations Redesigned gauges with clock, 6-speed indictor light and LED 49mm forks 30.5-degree fork angle/29-degree steering head angle Wrap-around rear fender 160mm rear tire Black, 10-spoke Cast Aluminum wheels Stylized low-profile suspension Low-slung custom seat Easy-reach pullback handlebar Handlebar-mounted indicator cluster Single floating front brake rotor Mid-mount foot controls

BIKE DETAILS

Bike Type Road
SeriesDyna
Model Code FXDL
LAMS Approved False
ColoursVivid Black; Black Pearl; Fire Red Pearl; Deep Cobalt Pearl; Pacific Blue Pearl; Pewter Pearl; White Gold Pearl; Suede Blue Pearl/Vivid Black; Fire Red Pearl/Black Pearl or Deep Cobalt Pearl/Pwtr Prl
Country of Origin USA
Grey Import False
Is Limited Edition False

ENGINE

Engine Description 1584
Engine Config V-Twin
Engine Capacity 1584 cc
Engine Type Piston
Engine Stroke 4
Bore95.2 mm
Stroke 111.3 mm
Cam Type OHV (Over Head Valves)
Cylinders 2
Valves Per Cylinder 2
Compression Ratio 9.2:1
Induction System Aspirated
CarburettorESPFI - Electronic Sequesntial Port Fuel Injection
Cooling Air
Lubrication Dry Sump; Pressurised
Oil Capacity 2.8 L
Exhaust Config 2:1:2
Exhaust Description Chrome

START

StarterElectric

WARRANTY & SERVICING

Warranty KMs Unlimited
First Service Interval 1600
Regular Service Interval 8000

TRANSMISSION

Primary Drive Oil bath; Double row chain
Drive Type Belt
Gear Type Manual
Gear Number 6
Gear Change Method Left foot lever
Clutch Type Wet; 9-plate

BRAKES

Front Brake Description Single foating disc; Hydraulic
Front Brake Caliper(s) Four Piston
Front Brake Diameter 300.0 mm
Rear Brake Description Single disc; Hydraulic
Rear Brake Caliper(s) Four Piston
Rear Brake Diameter 292.1 mm
ABSNot Available
Linked Braking System Not Available

ELECTRICS

Engine Voltage 12 Volt
Charging Method Engine

FUEL & EMISSIONS

Fuel Type Petrol
Recommended RON 95
Max Ethanol Blend E10
Fuel Tank Capacity 18.2 L
Fuel Reserve Capacity 2.80 L

CONVENIENCE

Seating Position Relaxed
Adjustable Seat Not Available
Backrest - Pillion Optional
Ride By Wire Not Available
Saddlebags/Panniers Optional
WindscreenOptional

SAFETY & SECURITY

Side Stand Start Inhibitor Not Available
Traction Control Not Available
AlarmOptional
Fork Lock with Key (Steering Stem)

CHASSIS & SUSPENSION

Chassis Description Black; rectangular section backbone; stamped, cast, & forged junctions; forged fender supports; MIG welded
Frame Material Mild steel
Trail114.3 mm
Side Stand Standard
Front Suspension 49mm Telescopic fork; Hydraulic damping
Rear Suspension Twin shock absorbers
Swingarm Type Dual Sided
Swingarm Description Mild steel, rectangular tube sections, stamped junctions, MIG welded

INSTRUMENTS & CONTROLS

Instruments / Dash Description Electronic speedometer (tank-mounted) with odometer, clock on odometer, resettable trip meter, fuel gauge with low fuel warning light, low oil pressure indicator light, diagnostics readout, LED lights, 6-speed indicator light

DIMENTSIONS & WEIGHTS

Length2364 mm
Width921 mm
Height1194 mm
Wheelbase 1640 mm
Ground Clearance 142.0 mm
Seating Capacity 2

WHEELS & TYRES

Wheel Type Black; 10-spoke; Cast aluminium
Wheel Size Front 2.5x19" (63.5x482.59mm)
Wheel Size Rear 4.5x17" (114.3x431.79mm)
Rear Tyre 160/70-B17" Dunlop K591 Dunlop Harley-Davidson Series, blackwall
Front Tyre 100/90-19" (57H) D401F Dunlop Harley-Davidson Series, blackwall
